Product details

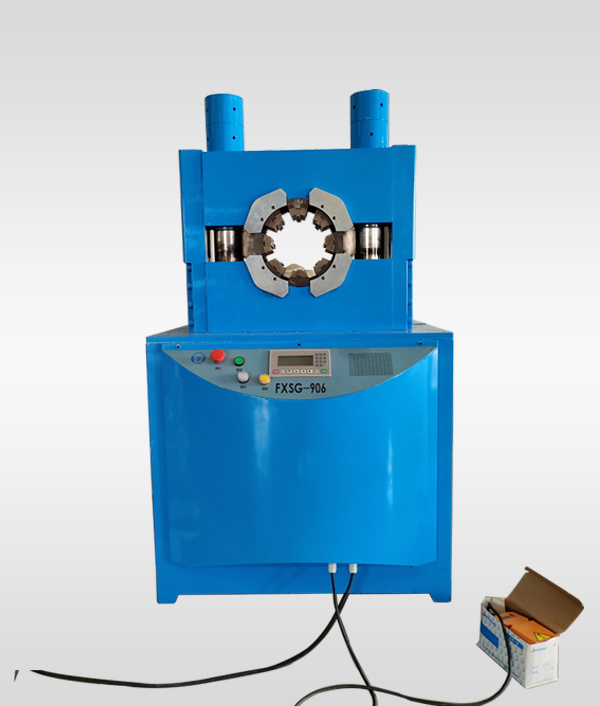

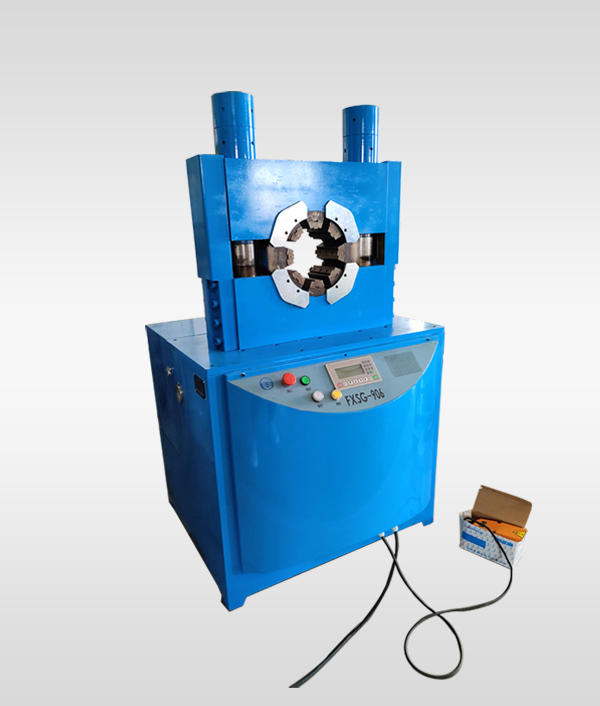

Product model:FXSG-906SK
Product features:Fast no-load speed, fast return speed, several times more effective, humanized appearance design, beautiful appearance, fast working speed, large clamping capacity, widely used
Technical Parameter
|
Crimping range (mm/inch) |
6mm-32mm |
|
hose ID (mm/inch) |
32mm |
|
Cylinder thrust |
494T |
|
Full crimping circle (seconds) |
close: 48mm/s Crimping:1.5mm/s |
|
open:69mm/s |
|
|
Opening and closing |
±70mm |
|
opening (no dies) |
210mm |
|
Accuracy |
≤0.1mm |
|
Motor |
4kw |
|
Voltage |
380V/50HZ |
|
Systematic pressure |
31.5MPa |
|
Displacement of oil pump |
14.4L/min |
|
Fuel tank capacity |
229L |
|
Dies for the machine ( hange ) |
8sets |
|
Weight |
950kg |
|
Volume |
900x900x1490mm |
